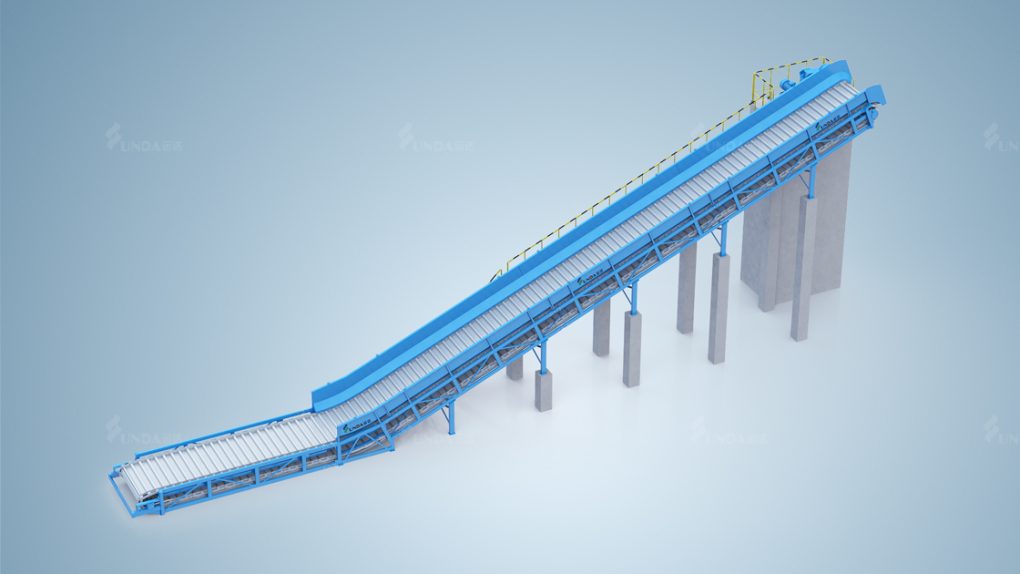

Slat Conveyor

Working Principle

Composed of driving device, tail wheel device, tension device, chain plates and machine frame.

1. Driving Device

This device has motor, reducer, transmission device and driving chain wheel, etc. The driving force is transmitted to the main shaft from the driving device by a pair of bush roller chain wheels, and then slot plates are driven. The drive chain pulley drives two chip drag chains and slot plates to run along the track by adopting two six-tooth chain wheels.

2. Tail Wheel Device

This part helps change the running direction of chain plates. It consists of tail wheel shaft, two tail wheels and bearing, etc.

3. Tension Device

Spiral tension method is adopted to adjust the tightness of the drag chain.

4. Chain Plates

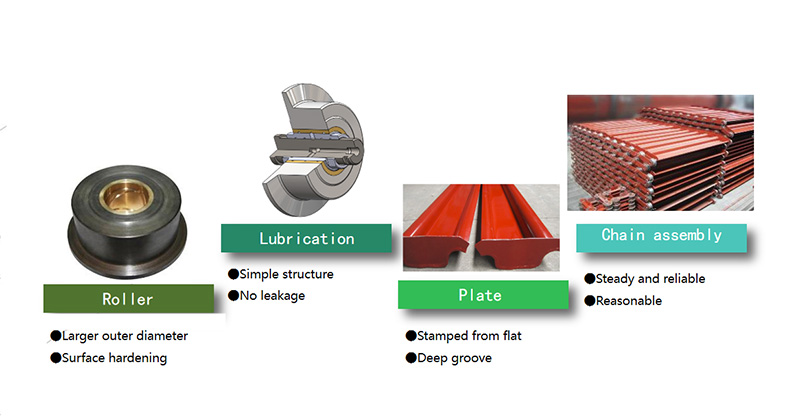

Made up of drag chain and slot plates. It uses impact-resistance, stable and reliable chip drag chain. Rollers set inside the inner chain plates runs along the track to reduce the friction drag and abrasion. Slot plates are fastened by bolts and drag chain.

5. Machine Frame

Including head frame, tail stand and intermediate frame, made by welded channel steel, angle steel and reinforced plate. There are four light rails for rollers running.

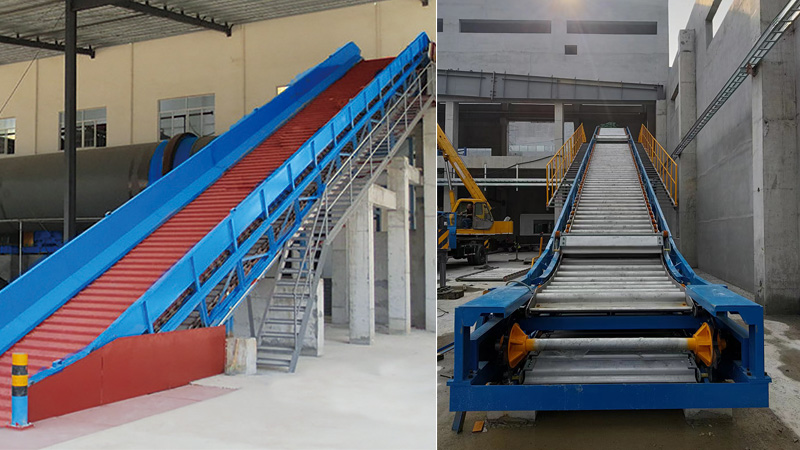

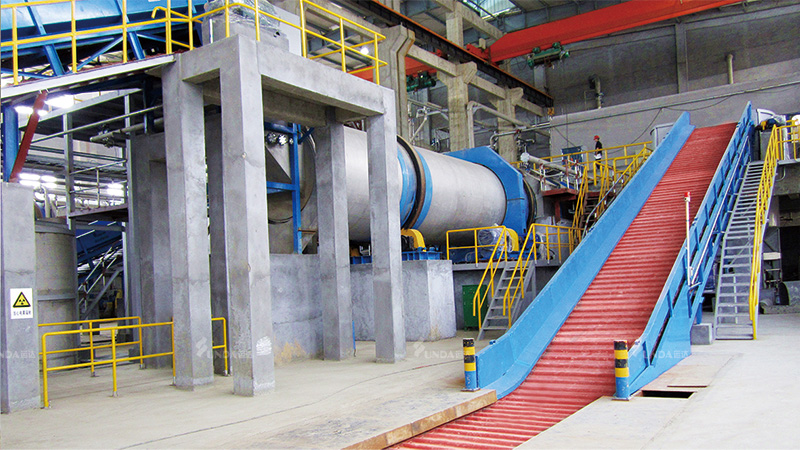

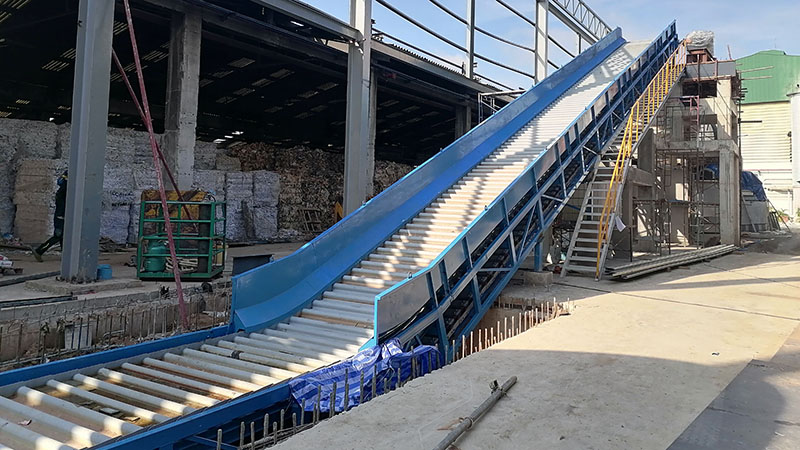

Project

Technical Parameters

Model	BWF1200	BWF1400	BWF1600	BWF1800	BWF2000	BWF2200	BWF2400
Effective Width (mm)	1200	1400	1600	1800	2000	2200	2400
Capacity (m³/h)	65-210	80-225	95-300	110-345	140-390	180-430	240-500
Speed (m/min)	1.2-10
Incline	Bale and pulp board ≤22° bulk waste paper ≤45° wood board ≤45°
Raw Material	Bales, pulp board, bulk waste paper, wood chips
Raw Material Max Size (mm)	1000	1200	1400	1600	1800	2000	2200
